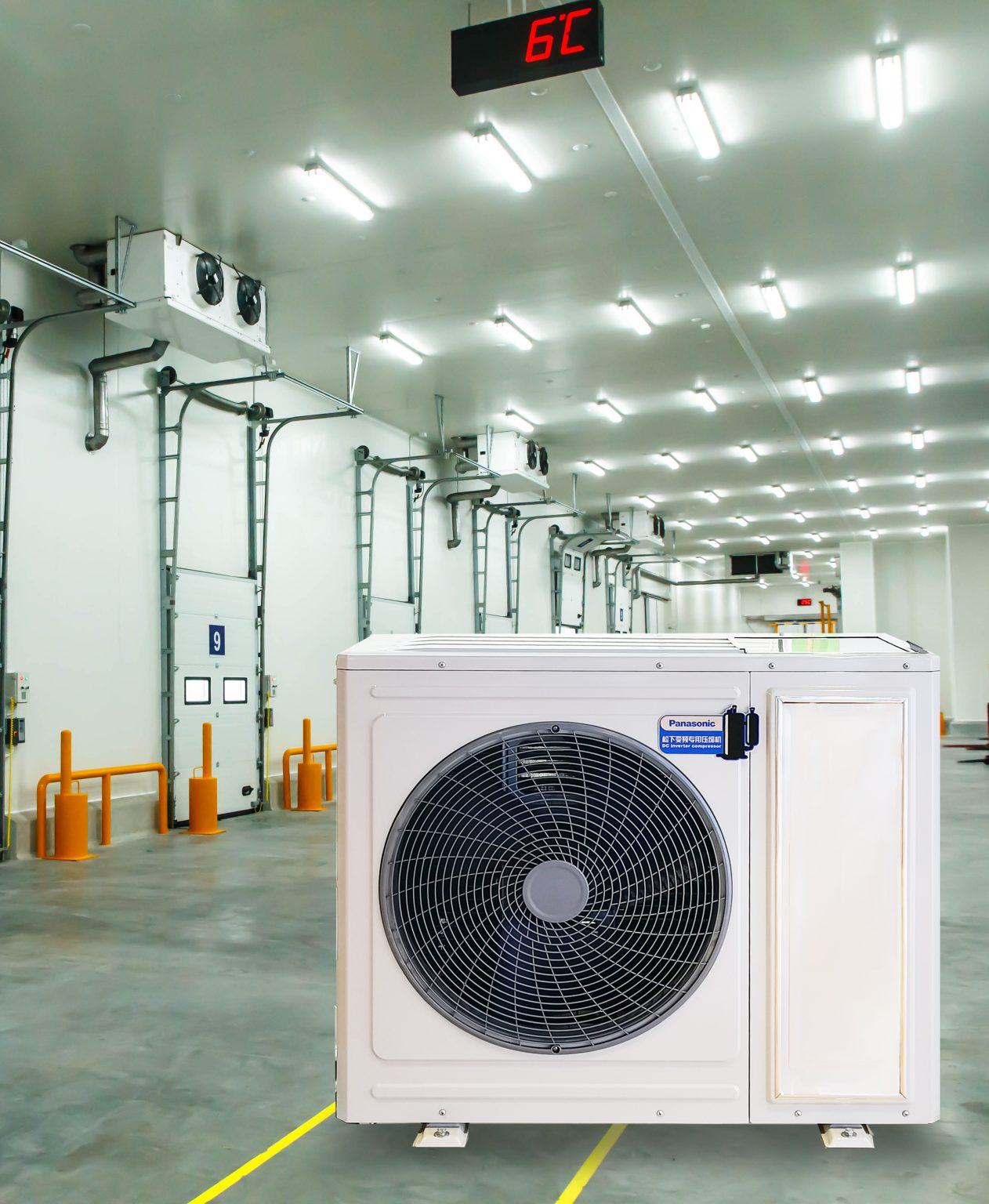

DC INVERTER CONDENSING UNIT SOLUTION
We can provide customers with three solutions: OEM, ODM, and fully configured parts selection for DC Inverter condensing units, helping customers quickly achieve frequency conversion upgrades for the condenser units.
We offer OEM, ODM, CKD, and SKD services worldwide.
- Meet the storage temperature requirements of -25°C~+20°C
- Energy savings of 35%
- Precise temperature control ± 2°C
- Low noise and smooth start-up
- Hot fluoride defrost
- Easy to maintain
- High reliability
Core Components
| Components | Brand | Model No. for 3HP Unit |
| Compressor | Panasonic | H220D5RZAAJ2 |
| Electric Expansion Valve | Danfoss | ETS-5M17 |

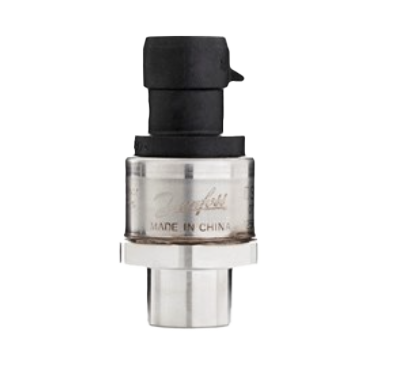

| Pressure Sensor | Danfoss | DST P110 |
| Solenoid Valve | Danfoss | EVR3 |
| Dry filter | Danfoss | DCB083S |
| Sight Glass | Danfoss | SGP 10s N |
| Electric Expansion Valve | Danfoss | ETS-5M13 |
| Economizer PBHX | Danfoss | C12L-EZ-14 |

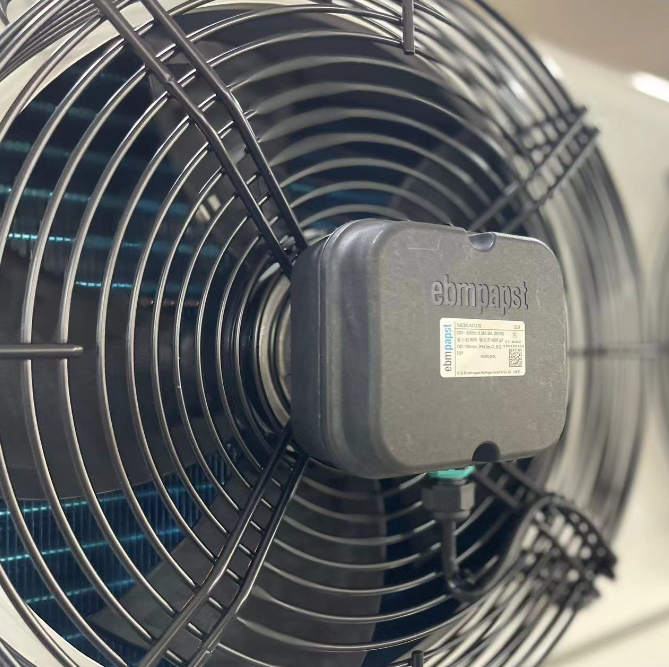

| Axial Fan | ebmpapst | VMA0300H4MEZ |
EVI + DC Inverter, Stronger Cooling Performance
Meet the storage temperature requirements of -25°C~+20°C;

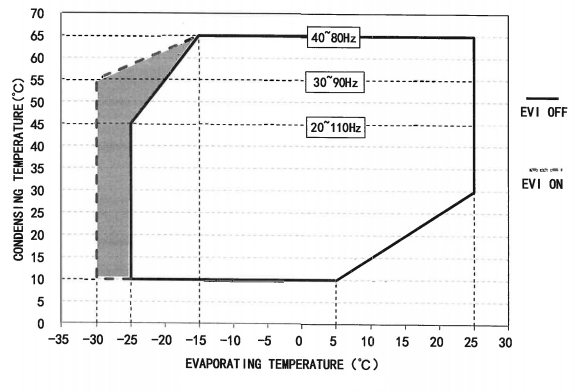

Start up the EVI, the unit still can get good performance at an Evaporating Temperature of -30℃ and a Condensing Temperature of 55℃。
Energy saving
The DC Inverter condensing unit changes the cooling capacity by adjusting the compressor speed (20~110HZ) to adapt to the load changes in cold storage. This adjustment method can improve the unit efficiency and energy saving in the partial load. Overall it can save energy 35% more than the fixed frequency unit.
Precise temperature control
The DC Inverter condensing unit can accurately adjust the cooling capacity according to the temperature requirements in cold storage, making the temperature in storage more stable. This precise temperature control can ensure the freshness of food and other items and extend their shelf life.
Fixed speed ±5℃ vs variable frequency ±2℃
Low Noise
The DC Inverter condensing unit adopts advanced compressor technology and shock-absorbing measures, resulting in low noise during operation. This reduces interference with the surrounding environment and improves comfort.
Smooth Start-Up
- Fixed speed unit, compressor capacitor start, large instantaneous current at start, large noise and vibration
- The DC Inverter unit starts from a standstill, and the compressor gradually increases the operating frequency, resulting in a smoother start, less energy consumption, and less noise and vibration.
Hot Fluorine Defrost
- Automatically enter and exit the defrost mode, defrosting completely and reliably.
- Defrosting time is shortened by 70% (only 3-5 minutes each time)
- Defrost power consumption reduced by 80%
- No need for electric heating, high efficiency, and low consumption.
- Can meet the complete defrosting requirements of high frost fan in high humidity environment
- Automatically record the operation data of the unit before exiting the defrost mode, ensuring the unit returns to the proper refrigeration quickly.
- During the defrost mode, the temperature rise in the cold storage is small (12-15℃ for ordinary units and 3-5℃ for DC Inverter units)
- For example, each defrost for a 3HP unit saves energy of 1 kW‧h, then it can save energy about 4-5 kW‧h per day, and 1,500 kW‧h per year at least.
High Reliability
- The DC Inverter condensing unit adopts core components of world-famous brands
- Panasonic inverter compressor
- Danfoss valves
- EBM fan
High-quality compressors and components, undergoing strict production processes and quality control, have high reliability and stability. This can ensure the stability and durability of the unit in long-term operation
Easy to Maintain
The control system of the DC Inverter refrigeration unit adopts an intelligent design and can realize functions such as automatic diagnosis and fault prompts. This can reduce maintenance workload and improve maintenance efficiency.
Comprehensive system protection
- Compressor operating status
- Reverse rotation protection
- Over current protection
- Exhaust temperature protection
- Main power failure protection
- High voltage shutdown
- Low voltage shutdown (medium temperature only)
- Liquid return alarm
- Minimum compressor idle time
- Temperature sensor failure alarm
DC Inverter Condenser Unit in Low Temperature
| Capacity (HP)/Low Temperature | 2HP | 3HP | 5HP | 6HP | 5HP | 6HP | 8HP | 10HP | 13HP | |
| External Unit | External Unit Model | VRL020PCS-AH0000 | VRL030PCS-AH0000 | VRL050PCS-AH0000 | VRL060PCS-AH0000 | VRL050PCS-BH0000 | VRL060PCS-BH0000 | VRL080PCS-BH0000 | VRL100PCS-BH0000 | VRL130PCS-BH0000 |
| Compressor Model | H138D5RZAAJ2 | H220D5RZAAJ2 | H420D5VZAAJ2 | H420D5VZAAJ2 | H420D5VZAAJ2 | H420D5VZAAJ2 | H550D5VZAAJ2 | H650D5VZAAJ2 | H800D5JZAAJ2 | |
| Frozen Oil | POE | |||||||||
| External Electromechanical System | 220V/1PH/50HZ | 220V/1PH/50HZ | ||||||||
| Liquid Reservoir (L) | 1.6 | 1.6 | 3.1 | 3.1 | 3.1 | 3.1 | 5.6 | 5.6 | 7.4 | |
| Cooling Capacity (KW)/Working Conditions: Low Temperature Te=-23℃, Tc=45℃; | 3.03 | 4.26 | 7.12 | 8.72 | 7.12 | 8.72 | 11.01 | 14.83 | 18.15 | |
| Rated Power (KW) | 1.95 | 2.49 | 4.11 | 5.15 | 4.11 | 5.15 | 6.53 | 8.58 | 10.72 | |
| Maximum Power (KW) | 3.02 | 4.53 | 6.86 | 7.21 | 6.86 | 7.21 | 12.41 | 16.3 | 18.76 | |
| Running Current (A) | 7.53 | 9.62 | 15.88 | 19.89 | 5.31 | 6.65 | 8.43 | 11.08 | 13.85 | |
| Maximum Current (A) | 13.74 | 20.6 | 31.2 | 32.77 | 12.5 | 13.15 | 18.85 | 24.77 | 28.5 | |
| Refrigerant | R410A | |||||||||
| Filling Volume (kg)/Note: within 15 Meters of One-way Pipeline | 2.3 | 3 | 4.8 | 5.3 | 4.8 | 5.3 | 8 | 9.5 | 12 | |
| Evaporation Temperature Range (℃) | -35～5 | -35～5 | -35～5 | -35～5 | -35～5 | -35～5 | -35～5 | -35～5 | -35～5 | |
| Ambient Temperature Range (°C) | -35～43 | |||||||||
| Cold Storage Temperature Range (℃) | -30～15 | -30～15 | -30～15 | -30～15 | -30～15 | -30～15 | -30～15 | -30～15 | -30～15 | |
| Compressor Operating Frequency Range (Hz) | 30～90 | |||||||||
| Number of Condensing Fans | 1 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| Intake Pipe Outer Diameter (mm/inch) | 12.7 (1/2) | 12.7 (1/2) | 15.88 (5/8) | 15.88 (5/8) | 15.88 (5/8) | 15.88 (5/8) | 19.05 (3/4) | 19.05 (3/4) | 22.22 (7/8) | |
| Liquid Pipe Outer Diameter (mm/Inch) | 9.52 (3/8) | 9.52 (3/8) | 9.52 (3/8) | 9.52 (3/8) | 9.52 (3/8) | 9.52 (3/8) | 12.7 (1/2) | 12.7 (1/2) | 15.88 (5/8) | |
| External Dimensions W×D×H (mm) | 960×370×810 | 960×370×810 | 960×370×1260 | 960×370×1260 | 960×370×1260 | 960×370×1260 | 1083×390×1435 | 1083×390×1435 | 1425×440×1690 | |
| External Unit Installation Dimensions W×D (mm) | 636×415 | 636×415 | 636×415 | 636×415 | 636×415 | 636×415 | 595×424 | 595×424 | 524×524×480 | |
| Noise dB(A) Sound Pressure Level 1m Away | 56 | 56 | 60 | 60 | 60 | 60 | 60 | 61 | 62 | |
| Net Weight (Kg) | 52 | 58 | 95 | 106 | 95 | 106 | 122 | 134 | 156 | |
| Internal Unit | Indoor Unit Model | VHL02S135-AC0000 | VHK03S230-AC 0000 | VHK05S235-AC 0000 | VHK05S235-AC 0000 | VHK05S235-AC 0000 | VHK05S235-AC 0000 | VHK08S245-BC 0000 | VHK10S250-BC 0000 | VHK15S255-BC 0000 |
| Internal Electromechanical System | 220V/1PH/50HZ | 220V/1PH/50HZ | ||||||||
| Number of Evaporation Dans | 1 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| Evaporation Dan Diameter (mm) | 350 | 2×300 | 2×350 | 2×350 | 2×350 | 2×350 | 2×450 | 2×500 | 2×550 | |
| Total Air Volume of Evaporation Fan (m³/h) | 3150 | 4500 | 6300 | 6300 | 6300 | 6300 | 11500 | 14000 | 22600 | |
| Total Power of Evaporation Fan (W) | 138 | 2×83 | 2×138 | 2×138 | 2×138 | 2×138 | 2×246 | 2×504 | 2×805 | |
| Total Current of Evaporator Fan (A) | 0.33 | 2×0.26 | 2×0.33 | 2×0.33 | 2×0.33 | 2×0.33 | 2×0.57 | 2×0.9 | 2×1.75 | |
| Water Tray Electric Heating Power (KW) | 0.5 | 0.8 | 1 | 1 | 1 | 1 | 1.3 | 1.3 | 1.9 | |
| Intake Pipe Outer Diameter (mm/inch) | 12.7 (1/2) | 12.7 (1/2) | 15.88 (5/8) | 15.88 (5/8) | 15.88 (5/8) | 15.88 (5/8) | 19.05 (3/4) | 19.05 (3/4) | 22.22 (7/8) | |
| Liquid Pipe Outer Diameter (mm/Inch) | 9.52 (3/8) | 9.52 (3/8) | 9.52 (3/8) | 9.52 (3/8) | 9.52 (3/8) | 9.52 (3/8) | 12.7 (1/2) | 12.7 (1/2) | 15.88 (5/8) | |
| Internal Machine Dimensions W×D×H (mm) | 790×350×540 | 1069×333×438 | 1417×352×513 | 1417×352×513 | 1417×352×513 | 1417×352×513 | 1567×451×613 | 1567×451×613 | 1782×414×863 | |
| Indoor Unit Installation Dimensions W×D (mm) | 593×330 | 884×312 | 1232×331 | 1232×331 | 1232×331 | 1232×331 | 1394×381 | 1394×381 | 790.6×793×381 | |
| Net Weight (Kg) | 28 | 35 | 45 | 45 | 45 | 45 | 60 | 65 | 95 | |
DC Inverter Condenser Unit in Medium Temperature
| Capacity (HP)/Low Temperature | 2HP | 3HP | 5HP | 6HP | 5HP | 6HP | 8HP | 10HP | 13HP | |
| External Unit | External Unit Model | VRL020PCS-AH0000 | VRL030PCS-AH0000 | VRL050PCS-AH0000 | VRL060PCS-AH0000 | VRL050PCS-BH0000 | VRL060PCS-BH0000 | VRL080PCS-BH0000 | VRL100PCS-BH0000 | VRL130PCS-BH0000 |
| Compressor Model | H138D5RZAAJ2 | H220D5RZAAJ2 | H420D5VZAAJ2 | H420D5VZAAJ2 | H420D5VZAAJ2 | H420D5VZAAJ2 | H550D5VZAAJ2 | H650D5VZAAJ2 | H800D5JZAAJ2 | |
| Frozen Oil | POE | |||||||||
| External Electromechanical System | 220V/1PH/50HZ | 220V/1PH/50HZ | ||||||||
| Liquid Reservoir (L) | 1.6 | 1.6 | 3.1 | 3.1 | 3.1 | 3.1 | 5.6 | 5.6 | 7.4 | |
| Cooling Capacity (KW)/Working Conditions: Low Temperature Te=-23℃, Tc=45℃; | 3.03 | 4.26 | 7.12 | 8.72 | 7.12 | 8.72 | 11.01 | 14.83 | 18.15 | |
| Rated Power (KW) | 1.95 | 2.49 | 4.11 | 5.15 | 4.11 | 5.15 | 6.53 | 8.58 | 10.72 | |
| Maximum Power (KW) | 3.02 | 4.53 | 6.86 | 7.21 | 6.86 | 7.21 | 12.41 | 16.3 | 18.76 | |
| Running Current (A) | 7.53 | 9.62 | 15.88 | 19.89 | 5.31 | 6.65 | 8.43 | 11.08 | 13.85 | |
| Maximum Current (A) | 13.74 | 20.6 | 31.2 | 32.77 | 12.5 | 13.15 | 18.85 | 24.77 | 28.5 | |
| Refrigerant | R410A | |||||||||
| Filling volume (kg)/Note: within 15 Meters of One-way Pipeline | 2.3 | 3 | 4.8 | 5.3 | 4.8 | 5.3 | 8 | 9.5 | 12 | |
| Evaporation Temperature Range (℃) | -35～5 | -35～5 | -35～5 | -35～5 | -35～5 | -35～5 | -35～5 | -35～5 | -35～5 | |
| Ambient Temperature Range (°C) | -35～43 | |||||||||
| Cold Storage Temperature Range (℃) | -30～15 | -30～15 | -30～15 | -30～15 | -30～15 | -30～15 | -30～15 | -30～15 | -30～15 | |
| Compressor Operating Frequency Range (Hz) | 30～90 | |||||||||
| Number of Condensing Fans | 1 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| Intake Pipe Outer Diameter (mm/inch) | 12.7 (1/2) | 12.7 (1/2) | 15.88 (5/8) | 15.88 (5/8) | 15.88 (5/8) | 15.88 (5/8) | 19.05 (3/4) | 19.05 (3/4) | 22.22 (7/8) | |
| Liquid Pipe Outer Diameter (mm/Inch) | 9.52 (3/8) | 9.52 (3/8) | 9.52 (3/8) | 9.52 (3/8) | 9.52 (3/8) | 9.52 (3/8) | 12.7 (1/2) | 12.7 (1/2) | 15.88 (5/8) | |
| External Dimensions W×D×H (mm) | 960×370×810 | 960×370×810 | 960×370×1260 | 960×370×1260 | 960×370×1260 | 960×370×1260 | 1083×390×1435 | 1083×390×1435 | 1425×440×1690 | |
| External Unit Installation Dimensions W×D (mm) | 636×415 | 636×415 | 636×415 | 636×415 | 636×415 | 636×415 | 595×424 | 595×424 | 524×524×480 | |
| Noise dB(A) Sound Pressure Level 1m Away | 56 | 56 | 60 | 60 | 60 | 60 | 60 | 61 | 62 | |
| Net Weight (Kg) | 52 | 58 | 95 | 106 | 95 | 106 | 122 | 134 | 156 | |
| Internal Unit | Indoor Unit Model | VHL02S135-AC0000 | VHK03S230-AC 0000 | VHK05S235-AC 0000 | VHK05S235-AC 0000 | VHK05S235-AC 0000 | VHK05S235-AC 0000 | VHK08S245-BC 0000 | VHK10S250-BC 0000 | VHK15S255-BC 0000 |
| Internal Electromechanical System | 220V/1PH/50HZ | 220V/1PH/50HZ | ||||||||
| Number of Evaporation Fans | 1 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| Evaporation Fan Diameter (mm) | 350 | 2×300 | 2×350 | 2×350 | 2×350 | 2×350 | 2×450 | 2×500 | 2×550 | |
| Total Air Volume of Evaporation Fan (m³/h) | 3150 | 4500 | 6300 | 6300 | 6300 | 6300 | 11500 | 14000 | 22600 | |
| Total Power of Evaporation Fan (W) | 138 | 2×83 | 2×138 | 2×138 | 2×138 | 2×138 | 2×246 | 2×504 | 2×805 | |
| Total Current of Evaporator Fan (A) | 0.33 | 2×0.26 | 2×0.33 | 2×0.33 | 2×0.33 | 2×0.33 | 2×0.57 | 2×0.9 | 2×1.75 | |
| Water Tray Electric Heating Power (KW) | 0.5 | 0.8 | 1 | 1 | 1 | 1 | 1.3 | 1.3 | 1.9 | |
| Intake Pipe Outer Diameter (mm/inch) | 12.7 (1/2) | 12.7 (1/2) | 15.88 (5/8) | 15.88 (5/8) | 15.88 (5/8) | 15.88 (5/8) | 19.05 (3/4) | 19.05 (3/4) | 22.22 (7/8) | |
| Liquid Pipe Outer Diameter (mm/Inch) | 9.52 (3/8) | 9.52 (3/8) | 9.52 (3/8) | 9.52 (3/8) | 9.52 (3/8) | 9.52 (3/8) | 12.7 (1/2) | 12.7 (1/2) | 15.88 (5/8) | |
| Internal Machine Dimensions W×D×H (mm) | 790×350×540 | 1069×333×438 | 1417×352×513 | 1417×352×513 | 1417×352×513 | 1417×352×513 | 1567×451×613 | 1567×451×613 | 1782×414×863 | |
| Indoor Unit Installation Dimensions W×D (mm) | 593×330 | 884×312 | 1232×331 | 1232×331 | 1232×331 | 1232×331 | 1394×381 | 1394×381 | 790.6×793×381 | |
| Net Weight (Kg) | 28 | 35 | 45 | 45 | 45 | 45 | 60 | 65 | 95 | |
