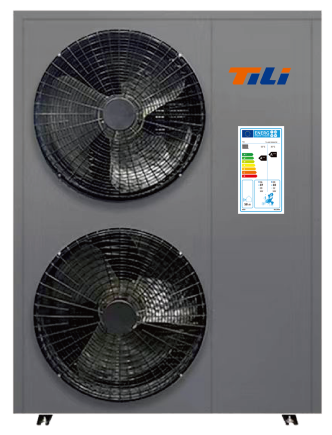

R32 DC Inverter + EVI Heat Pump Solution ( Air Source)
Eco-Friendly R32 Refrigerant
Heat pumps with Panasonic DC Inverter compressors are increasingly using the eco-friendly R32 refrigerant, an excellent energy- and cost-efficient heat transfer medium. With lower global warming potential, the R32 refrigerant is much more environmentally friendly.
- Higher Cooling Capacity
- Reduce Energy Costs
- Eco Friendly
Ultra-low Temperature Household Heating Application Solution (High reliability, high energy efficiency 5HP unit)
| Item | Brand | Model |
| Compressor | Panasonic | 9VD420ZAA2J |
| Condenser | Danfoss | C39L-EZ-54/42 |
| Economizer | Danfoss | C12-EZ-16 |
| Main Electronic Expansion Valve | Danfoss | ETS5-24 |
| Auxiliary Electronic Expansion Valve | Danfoss | ETS5-13 |
| High Pressure Sensor | Danfoss | DST P110 |
| Low Pressure Sensor | Danfoss | DST P110 |
| Frequency Converter | Carel | SCL00UP240-C |
| Water Pump | Wilo | Para maxo 9 |
| Dry Explosion Filter | Danfoss | DML033S |
Panasonic Compressor For R32 DC Inverter + EVI Heat Pump
EVI with a stronger heating capacity

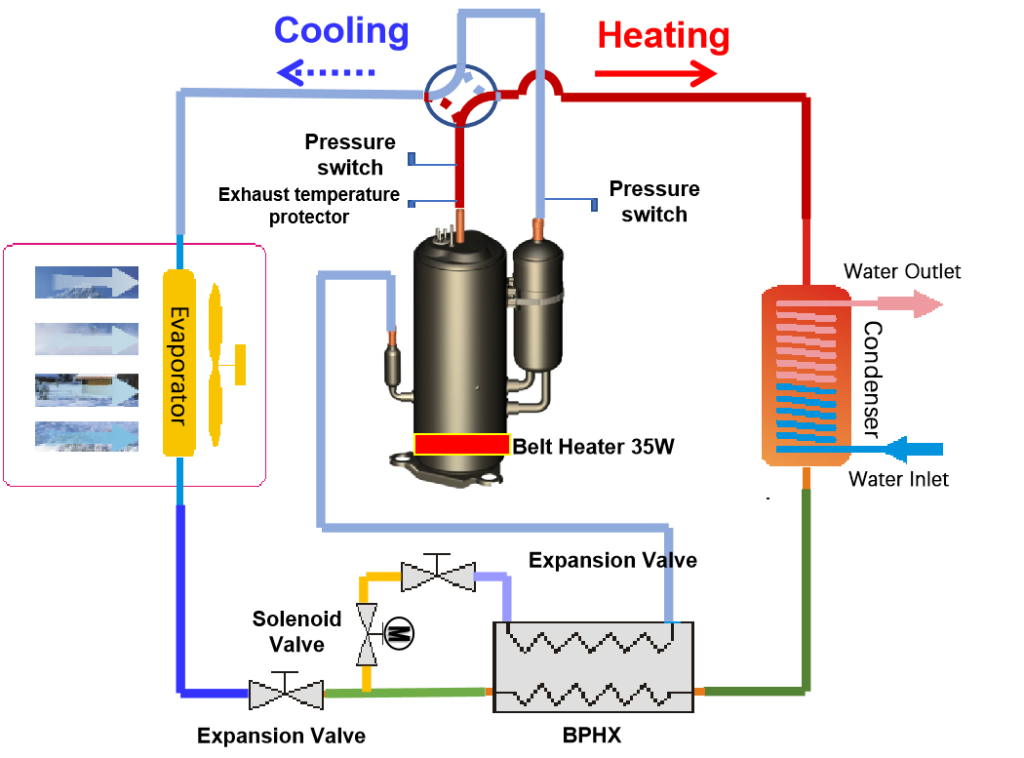

Schematic
- The 2nd Generation EVI Design;
- Twin rotary structure design, the upper and lower cylinders are replenished at the same time, low vibration, low noise, and heating capacity increased;
- The air supply valve plate is sealed, no backflow, and the clearance volume is minimized to maximize the EVI effect, and the air supply side does not need to be equipped with a one-way valve;
- High magnetic grade rare earth motor EVI special design application, high efficiency, good anti-low temperature demagnetization effect;
- High wear-resistant slider surface treatment patent technology application, high reliability;
- The structure of the make-up gas reservoir is equipped, the airflow pulsation is small, and the foreign matter is prevented from entering.

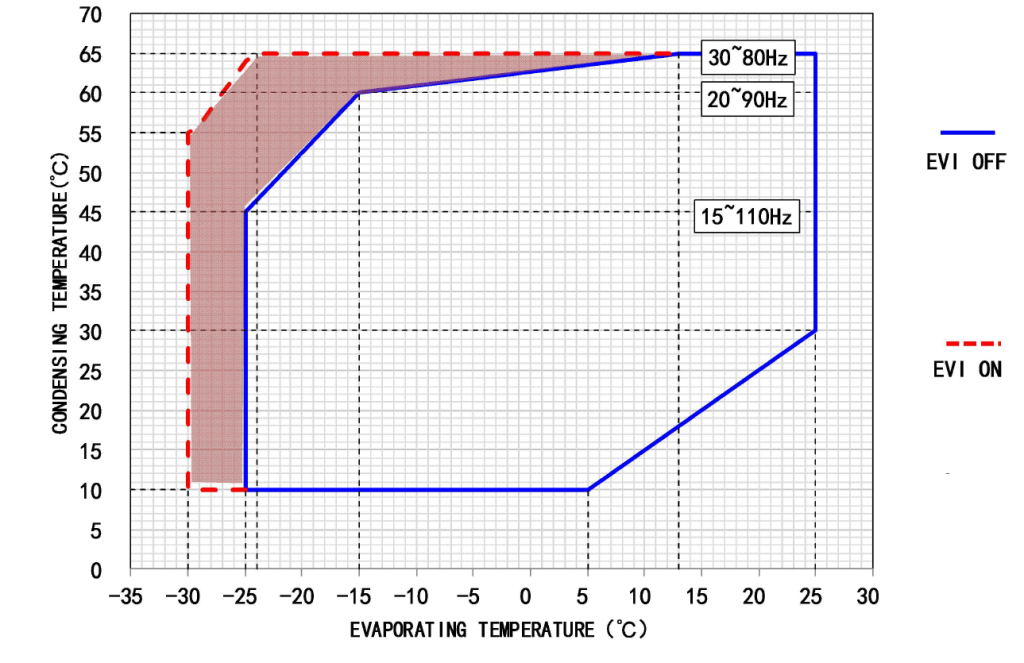

Ultra-powerful operating range
- Ultra-wide temperature operation
Evaporating-30℃~Condensing65℃
2.Ultra-wide frequency operation
15Hz Min~110Hz Max
3.Ultra-efficient and low-noise
The 2nd generation motor + patented side row silencing cover
A low-noise product that improves the sense of hearing

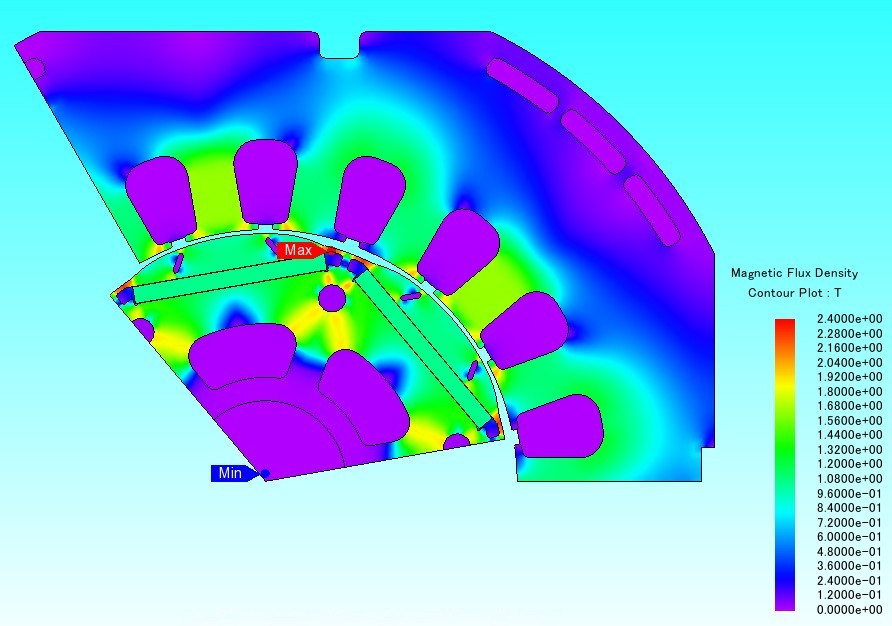

1.Panasonic low-noise motor
pole rare earth distribution volume
2.Low center of gravity pump body structure
Pump body fixing method: cylinder Cylinder shape optimization

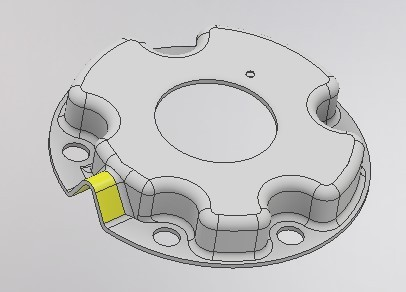

3.Optimization of the silencing channel
Patented side exhaust silencing covers
Through the optimization of the design of the motor and the silencing cover, the motor efficiency is improved, and the noise of the unit is reduced

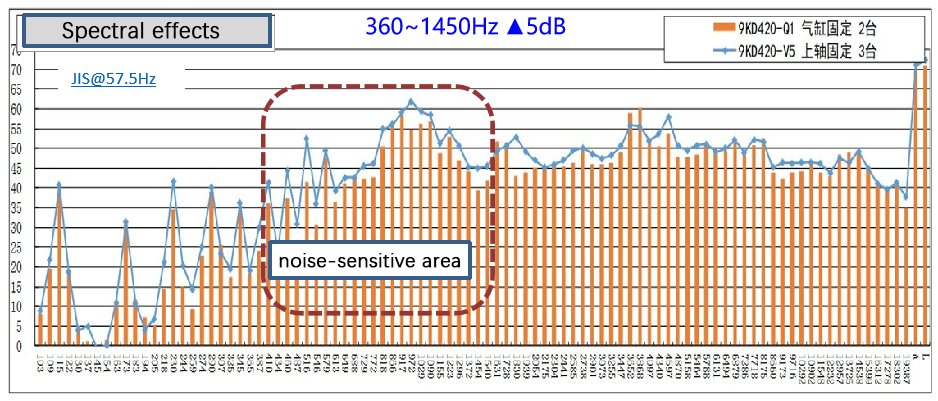

Technical points: Through the optimization of the structure of the pump body with a low center of gravity/exhaust, the noise level in the 315~1250Hz section of the sensitive area is reduced by more than 9dB
| Model | TL-AH003HC32 | TL-AH-004HC32 | TL-AH-005HC32 | TL-AH-006HC32 | TL-AH-008HC32 | |
| Rated Heating Capacity | KW | 9 | 12 | 18 | 21 | 25 |
| Heating Capacity Range | KW | 2-10 | 4-13 | 6-19 | 6-24 | 10-27 |
| Rated water flow | M3/h | 1.5 | 1.9 | 2.7 | 3.8 | 4.4 |
| KW | 9.14 | 12.59 | 18.43 | 22.01 | 25.3 | |
| KW | 2.1 | 2.9 | 4.19 | 5.18 | 5.91 | |
| Rated voltage /Frequency/Phase | W/W | 4.35 | 4.34 | 4.39 | 4.25 | 4.28 |
| Start Current | KW | 8.99 | 11 | 17.82 | 20.5 | 24.5 |
| Maximum Input Power | KW | 2.41 | 3.08 | 4.92 | 5.77 | 6.96 |
| Maximum Input Current | W/W | 3.73 | 3.57 | 3.62 | 3.55 | 3.52 |
| Brand/Type of Compressor | V/Hz | 230/50 or 60/1 | 230/50 or 60/1 400/50 or 60/3 | 230/50 or 60/1 400/50 or 60/3 | 230/50 or 60/1 400/50 or 60/3 | 400/50 or 60/3 |
| Compressor Oil Type | A | 0.5 | 0.9 | 1.5 | 1.5 | 2 |
| Refrigerant | KW | 3.1 | 3.55 | 5.5 | 6.5 | 8 |
| Air Flow | A | 14 | 18 | 25.0 | 28.0/12 | 13 |
| Brand of Fan Motor (EC Fan) | / | |||||
| Fan Output | / | |||||
| Defrost | / | R32 | R32 | R32 | R32 | R32 |
| Waterproof Grade | M3/h | 4000 | 4000 | 7600 | 7600 | 10600 |
| Noise Pressure (5 Meters) | LT / RD85HJ | LT / RD200HB | LT / RD85HJ | LT / RD200HB | LT / RD200HC | |
| Max Water Outlet Temperature | W | 80 | 80 | 80x2 | 80x2 | 200x2 |
| Diameter of Water Connection | / | |||||
| Drainage Valve | / | |||||
| Internal Pressure Drop at Rating Water Flow | dB(A) | 46 | 49 | 52 | 52 | 56 |
| Min/Max Heating Water Pressure (Safety Valve 3Bar) | °C | 60 | ||||

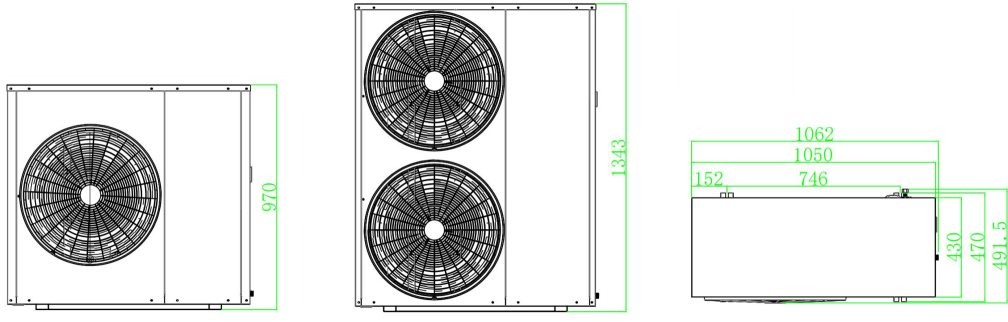

| Net Dimensions ( L/W/H ) | / | DN 25 (1") | DN 25 (1") | DN 25 (1") | DN 25 (1") | DN 40 (1.5") |
| Loading Quantity 20GP/40GP,40HQ | MM | 15 | ||||
| Kpa | 14.0 | 16.0 | 20.0 | 20.0 | 35 | |
| Bar | 0.5/3.0 | 0.5/3.0 | 0.5/3.0 | 0.5/3.0 | 0.5/3.0 | |
| MM | 1050/430/970 | 1050/430/970 | 1050/430/1343 | 1050/430/1343 | 1160/533/1555 | |
| PCS | 44/96/96 | 44/96/96 | 22/48/48 | 22/48/48 | 14/30/30 |

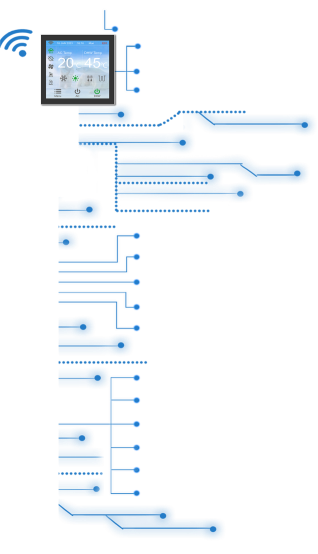

Multi language
WI-FI function Heating/Cooling/DHw/Heating+DHW/CoolinWI-FI function
Heating/Cooling/DHW/Heating+DHW/Cooling+DHWWith RS485 signal comnectionWith linked switch signal connection3 ways valve signal comnectionDual water sensors controlHeating/Cooling/DHw/Heating+DHW/Cooling+DHWBulit-in inverter water pupBulit-in 3Kw electric heaterBulit-in expansion tankStrong DC fan motorR32/R290 DC inverter Panasonic compressorMore multifunctional connection
Provide You A Perfect System
Automatic Heating
As long as the water temperature drops to the set point, the heat pump will start to work automatically to ensure the target temperature.
Fast Heating Time
Hot water can be supplied in a short time with the inverter technology.The built-in inverter water pump will cycle the water automatically.
Safety Protection
The heat pump will have a safety protection function. It will not freeze at negative temperatures. Water and electricity are separate and do not pose a risk of electric shock.
Smart Control
AU mode, which can automatically adjust the water temperature according to the ambient temperature.
Product Application
