WHAT ARE THE PANASONIC CO2 COMPRESSORS?

Panasonic developed the world’s first CO₂ rotary two-stage compression compressor, which uses CO₂ found in natureas a refrigerant and is therefore very environmentally friendly.These compressors are currently on the market for a variety of applications.

Panasonic CO₂ Two-Stage Rotary Compressor

15F models → heat pump water heaters, vending machines, refrigeration machines
20F model → heat pump water heater, car air conditioner
33F model →Commercial refrigerator, commercial heat pump, vehicle air conditioner

High Efficiency,CO₂ Natural Refrigerant Compressors

CO₂ (R-744) Variable Speed Rotary Compressors from Panasonic help light commercial refrigeration and heat pump manufacturers migrate to environmentally friendly, natural refrigerants. The Compressor Series offers the advantage of a high coefficient of performance (COP) while maintaining low noise and low vibration. These hermetic Compressors are designed for low and medium-temperature applications.

Features:

Designed to fit in narrow enclosures.
DC inverter (variable speed) compressors that cover a large range of capacities, from 300W to 550W, and 10 HP.
R-744 refrigerant has zero Ozone Depletion Potential (ODP) and the lowest Global Warming Potential (GWP) of 1.
CO₂ natural refrigerant compressors offer OEMs a solution aligned with EPA (SNAP) programs.

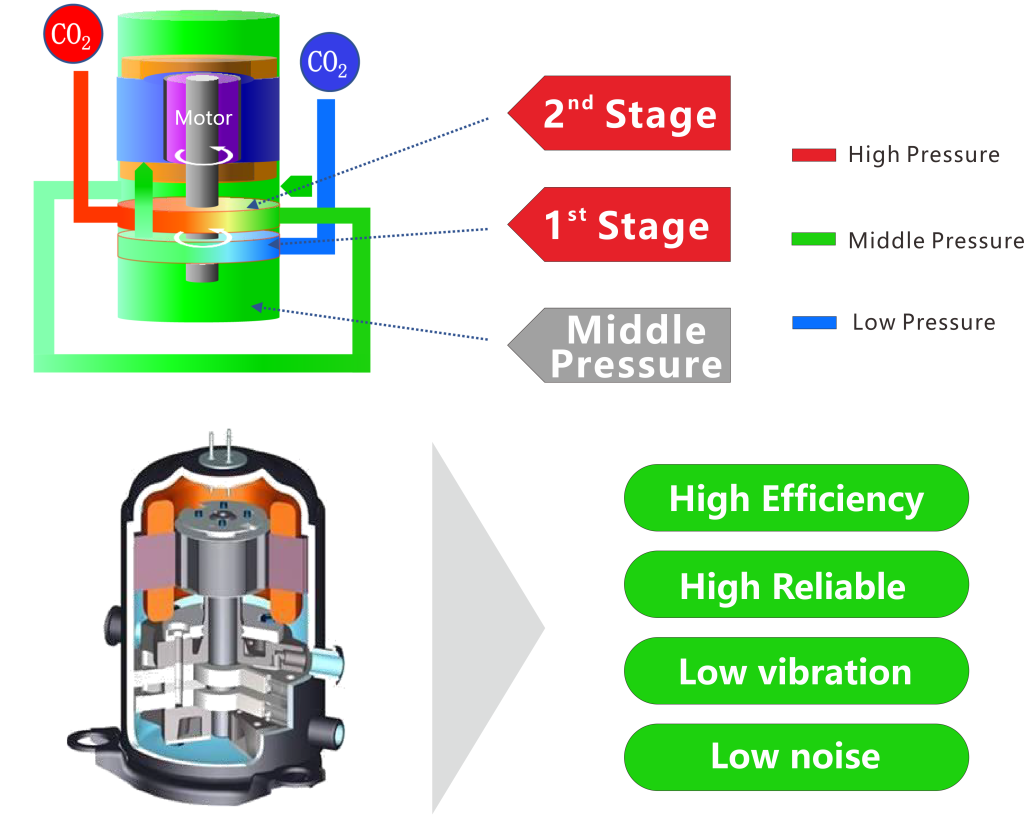

Panasonic CO₂ Two-Stage Rotary Compressor Technology

Two-stage compressor solution: Through a two-stage compressor, the refrigerant is compressed twice, from low pressure to high pressure, with two separate compressions

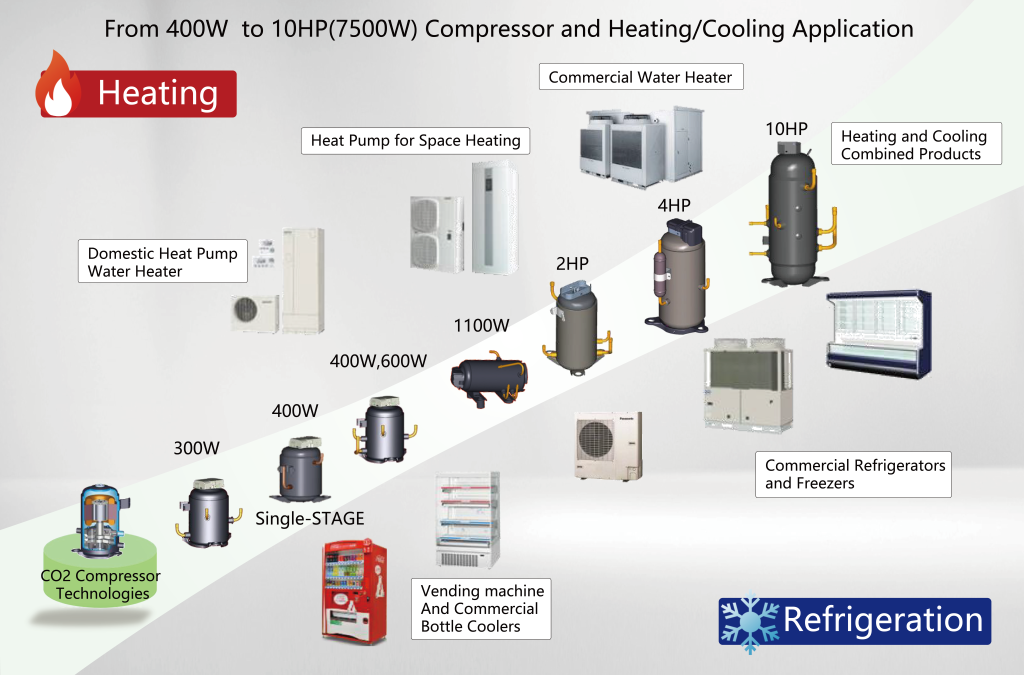

Panasonic CO₂ compressor application

CO₂ compressor technology: used in various refrigeration and heating fields

Panasonic CO₂ Rotary Compressor Model List

Series	Code	Model No.	Inner High pressure	Power Input	Volume/volume ratio		Speed	Suction pressure（MPa）		Evaporation temperature（℃）
Series	Code	Model No.	Inner High pressure	W	cc	%	rps	Common range	Possible range	Common range	Possible range
15F	80443070		●	400	1.28		30～70	1.9～4.5	1.7～5.0	-20～11	-23～15
	80494060			1100	3.33	60	40～70	1.1～4.5	0.73～5.0	-35～11	-45～15
	80439360		●	1600 （2HP）	4.5	74	37～70	1.1～5.0	0.73～5.0	-35～15	-45～15
20F	80428380			3000	8	70	40～80	1.1～5.0	0.73～5.0	-35～15	-45～15
20F	T-RLC080V02B 1B			（4HP）	8	70	40～80	1.1～4.0	0.73～4.0	-35～6.3	-45～6.3
33F	80415260			7500（10HP）	20.8	70	20～65	1.1～3.9	0.73～3.9	-35～5	-45～5
