Panasonic CO2 R744 DC inverter 58Hz Hermetic Compressor for Air-Conditioning &Heatpump Applications
| Model NO. | C-1CV43M0A | Refrigerant | R744 |
| Cooling Capacity (W) | 540 | Weight(KG) | 7.8 |
| Motor | SYNCHRONOUS ELECTRIC MOTOR (PM) | Motor Input (W) | 310 |
| Displacement(cm³) | 1.28 | Origin | China |
| Type | ROLLNG PISTON 2-STAGE COMPRESSION | Painting | Black color paintbaked |

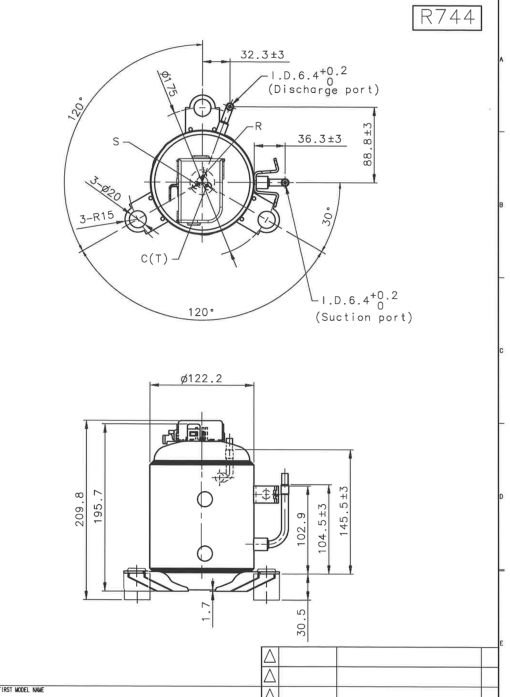

| Oil | DAPHNE PZ68S (IDEMITSU PAG) | Discharge Tube I.D.(mm) | 6.4 |
| Suction Tube I.D.(mm) | 6.4 | Approval Type | TUV CE·UKCA(LVD) cULus |
| Electric Supply (TO INVERTER) | 1PH-50Hz-200V | Reference: Inverter Input (W) | 335 |

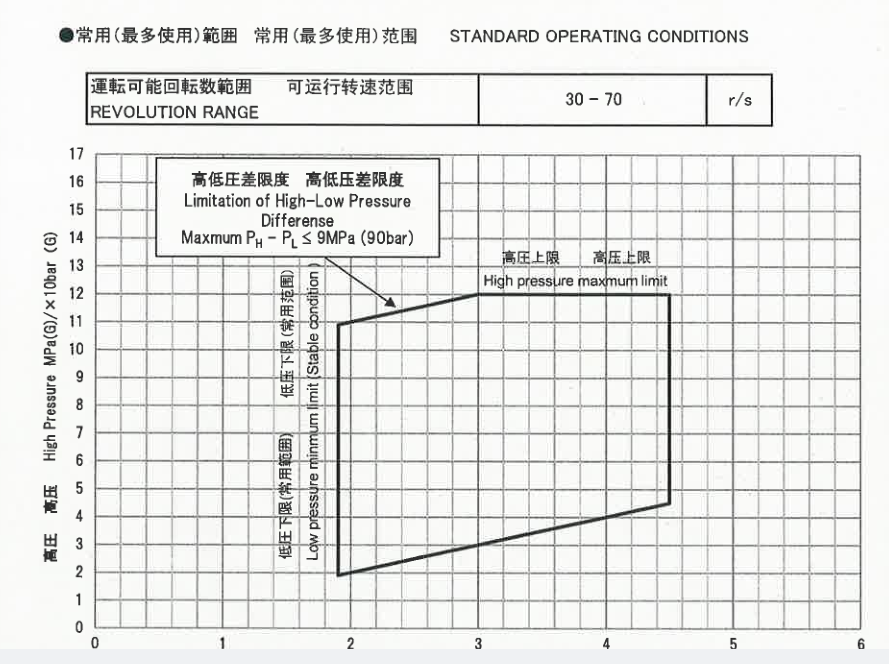

Rating Conditions:
SuctionPressure: 2.9 (29)MPa (bar)
Discharge Pressure.:9.0(90)MPa (bar)
Return gas Temperature: 35.0℃
Expansion Valve Inlet Temperature:35.0℃
Ambient Temperature:35.0℃
Compressor Cooling:Fan Cooling(3m/s)
- CATEGORIES
- 9KD420ZBA21
- 9VD330XAB2
1.Nature refrigerant CO.
2.Two-stage compression structure.
3.Driven by DC inverter,with operating frequency 20-80 rps.
4.With vertical and horizontal structure.suitable forinstallation on various devices.
5.High reliability,high effciency,light weight.
LEAVE A MESSAGE
If you are interested in our products and want to know more details, please leave a message here, we will reply you as soon as we can.
LEAVE A MESSAGE
LEAVE A MESSAGE
| Part Name | Part No. | Amt. | Mark | Supply(Yes or No) | |
| COMP ASM | 4-D-0730-0CC | 1 | A | ||
| PARTS | - | - | - | - | |
| - | - | - | - | ||
| - | - | - | - | ||
| - | - | - | - | ||
| - | - | - | - | ||
| - | - | - | - | ||
| - | - | - | - | ||
| A:パナソニック・万宝APコンプレッサ-広州有限会社の指定部品をご使用下さい。 Purchaser must use above specified parts NO. made by Compressor Supplier. B :本部品は、標準指定部品を供給者より直接購入されても結構です。 Purchaser may get specified parts directly from supplier of the parts. C :本部品は、仕様を満足するいずれの供給者のものを使用しても結構です。 Purchaser may get specified parts from any source. | |||||
