Danfoss Electric Expansion Valve ETS 6
Connection type: Solder, ODF
Code No.: 034G5000
Features and Benefits:
- Optimized energy efficiency of the system.
- Precision flow control with high resolution.
- Compact and lightweight.
- Energy saving design.
- Proven know-how and high reliability.
- Wide range for all common refrigerants.
- Bi-flow for heat pump applications.
Product details
| Gross weight | 0.056 Kilogram | Direction | Angleway |
| Net weight | 0.05 Kilogram | EU RoHS compliance | Yes |
| Volume | 0.203 Liter | EU RoHS exemption clause | No |
| Connection material | Copper | Flow direction | Bi-flow |
| Connection type | Solder, ODF |

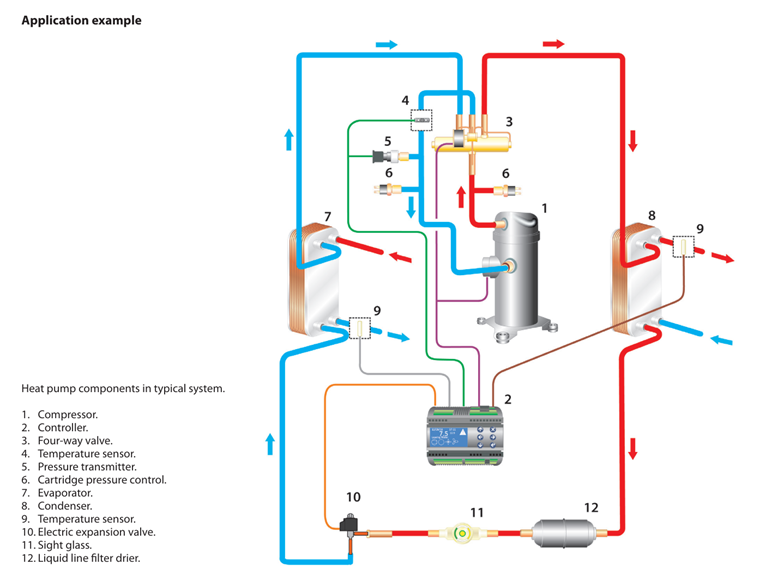

Application Example:

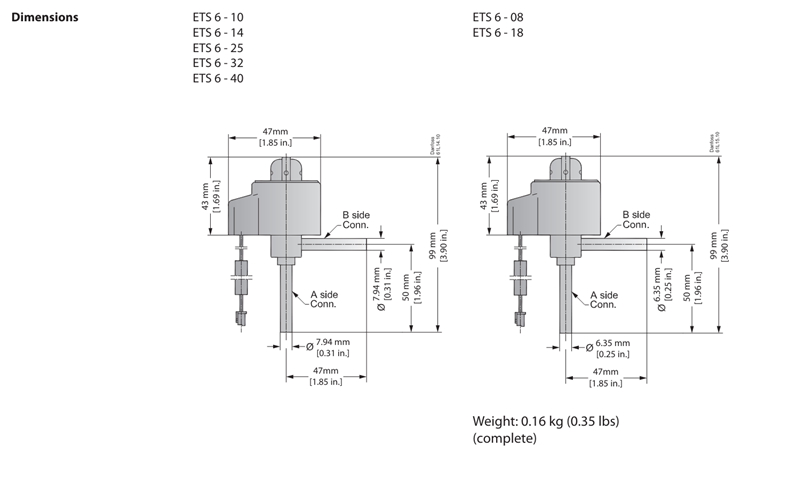

Dimension
