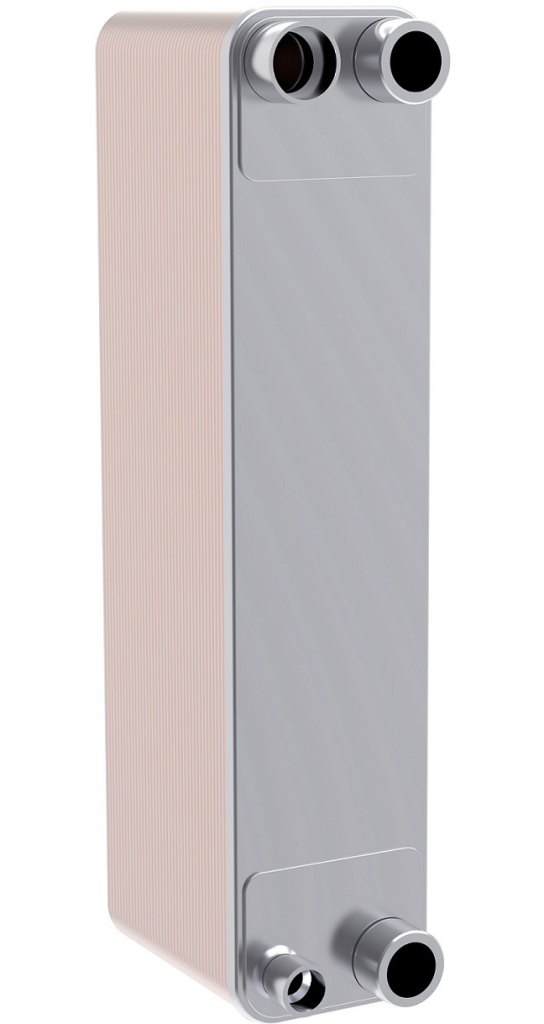

Danfoss Micro Plate Heat Exchanger for Chiller C62L-E
Our brazed plate heat exchangers (BPHE) offer a compact and flexible solution designed for ultra-efficient performance for your high-pressure or extreme-temperature applications.
Model No.: C62L-EZ-J-50
Code No.: 111B3694
Features and Benefits:
- Compact size, low weight
- High working pressures
- High efficiency evaporator closer approach temperatures
- Reduced risk of freezing
- Low internal hold-up volume
- Less pressure drop to reduce pumping costs and pump size
- High design flexibility with many connections & configurations options
- High-quality manufacturing
Function: Evaporator, Max working pressure [psi]: 711, Number of plates: 50, Brazing material: Copper brazing
Product details
| Gross weight | 9.63Kg | Design temperature range [F]【min】 | -390F |
| Net weight | 9.48Kg | Equipment Function | stud Evaporator |
| Application | Chiller | Function note | With distributor |
| Approval | AS | In scope of WEEE and contain batteries | No |
| RoHS | Max working pressure [psi] | 711 psi | |
| PED | Max working pressure [bar] | 49 bar | |
| UA | Number of plates | 50 | |
| UKCA | Packing format | Single pack | |
| UL | Plate pattern | Z-J | |
| Brazing Material | Copper brazing | Product group | Heat exchangers |
| Design temperature range [C]【max】 | 200c | Product Name Description | Micro Plate heat exchanger |
| Design temperature range [C]【min】 | -196c | Quantity per packing format | 1 pc |
