Panasonic Rotary R22 Hermetic Compressor for Air-Conditioning &Heatpump Applications

Model NO.	2P17S225ANQ	Refrigerant	R22
Cooling Capacity (W)	2770	Weight(KG)	12
Motor	Permanent Split Capacitor	Input Power (W)	885
Displacement(cm³)	16.35	Origin	China
Type	Rotary	Painting	Black color paintbaked
Oil	ATMOS NM56M SUNISO 4GDID or equivalent	Discharge Tube I.D.(mm)	8.06
Suction Tube I.D.(mm)	9.70	Approval Type	CCC ,TUV
Voltage/Frequency	220-240V 50HZ 1Phase	Current(A)	4.10

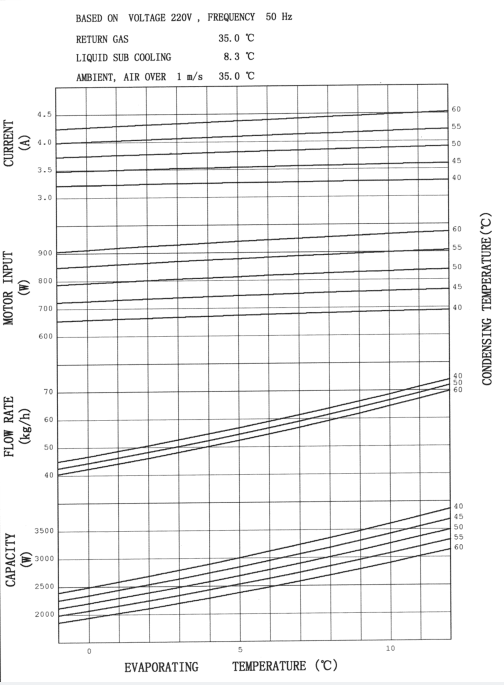

Rating Conditions: N-TEC

Evaporating Temperature.: 7.2℃

Condensing Temperature: 54.4℃

Return gas Temperature: 35.0℃

Liquid Temperature.: 46.1℃

Ambient, air over: 35.0℃，1m/s

1.High-quality, Reliable
2.Compact size and light weight
3.Low Noise and Vibration
4.Ultra-precision machining and assembly technology

LEAVE A MESSAGE

If you are interested in our products and want to know more details, please leave a message here, we will reply you as soon as we can.

NAME		PARTS NO.	DRAW NO.	REMARKS	QTY UNIT	MARK	SUPPLY

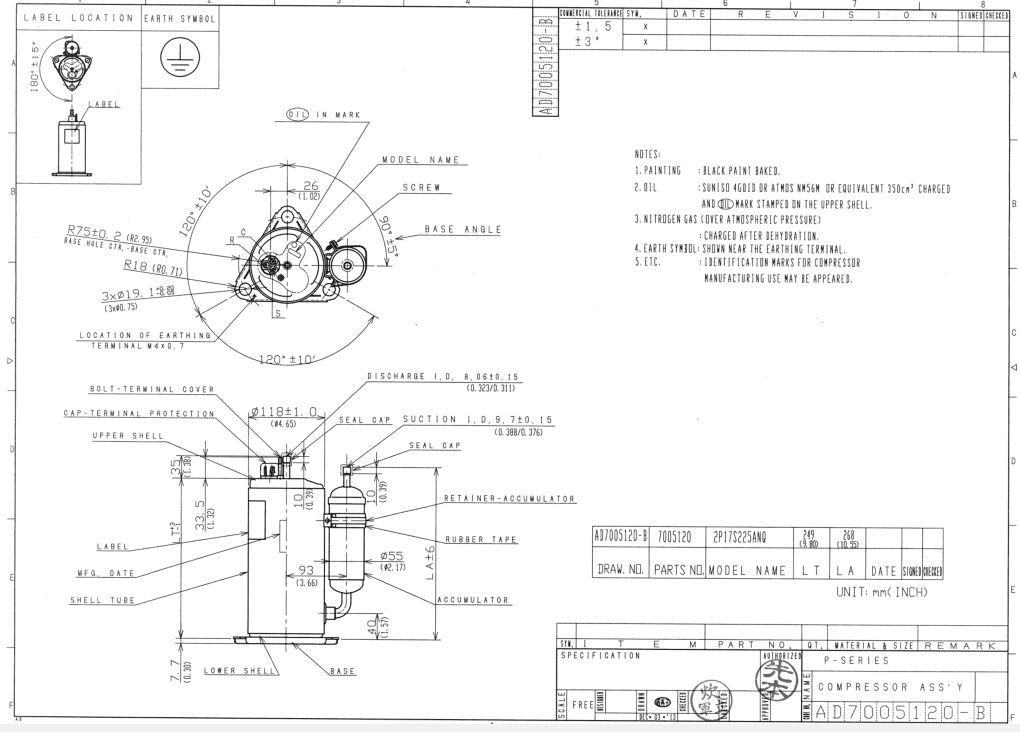

COMPRESSOR ASS'Y		7005120	AD7005120-B	OIL IN	1	A
PARTS	TERMINAL COVWR	7070219U	AD7070219U	---	1	A
	TERMINAL COVER GASKET	7070620U	AD7070620U	---	1	A
	NUT-TERMINAL COVER	7080310	AD7080310	---	1	A
	NUT GASKET	7070621U	AD7070621U	---	1	A
	RUBBER CRONMET	7070817 or7070837 оr7070815 or 7070836	AD7070817 orAD7070837 оrAD7070815 or AD7070836	---	3	A
	RUN CAPACITOR	---	---	30 μ F/370V	1	C
	OVERLOAD PROTECTOR	7100819	AD7100819	KA-122-LPDO21A	1	A
	SPRING FOR OLP HOLD DOWN	7041200	AD7041200	---	1	A
A:Purchaser must use above specified parts N0. made by compressor supplier. B:Purchaser use get specified parts directly from supplier of the parts. C:Purchaser may get specified parts from any source.
