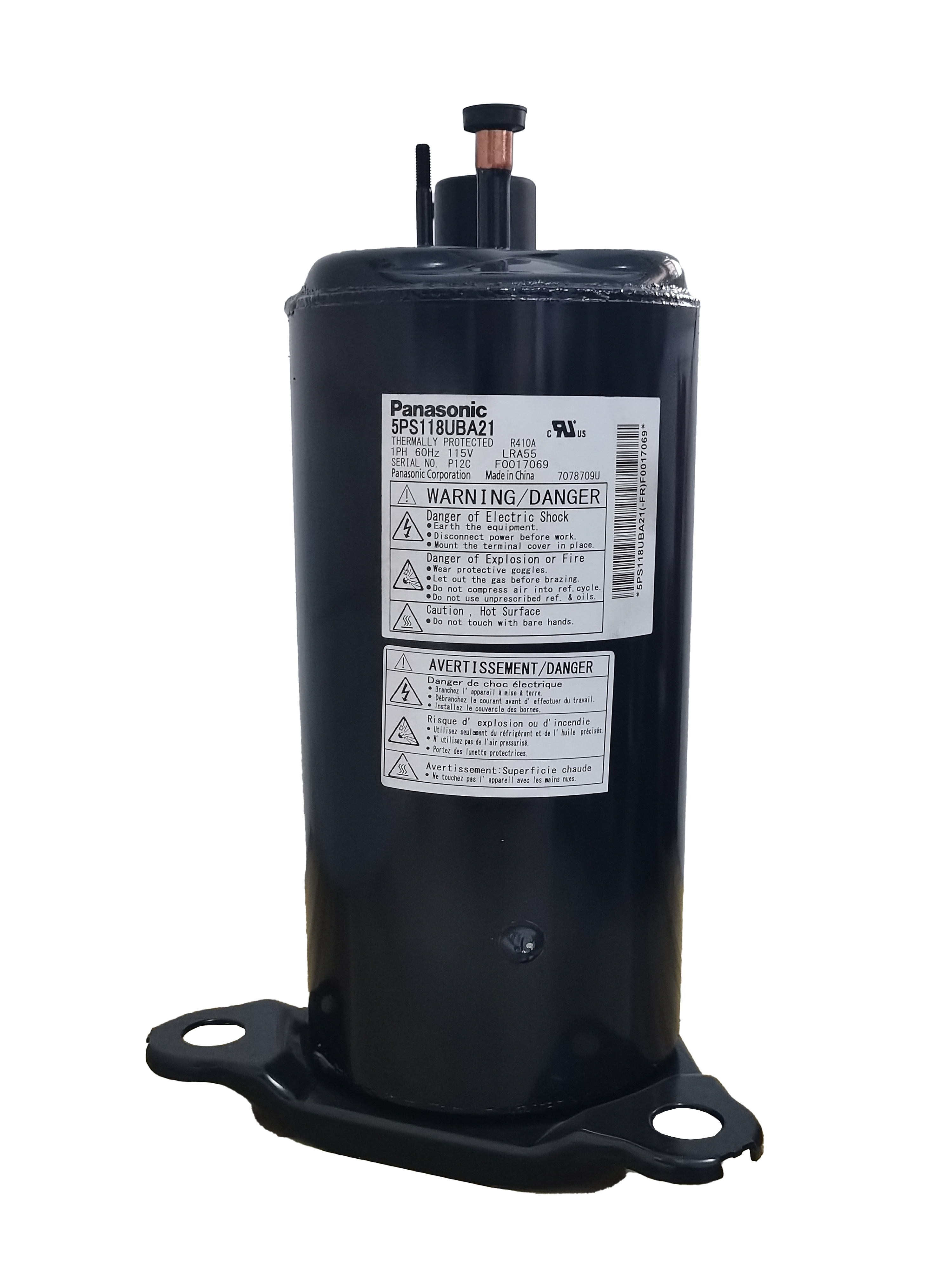

Panasonic Rotary R410A Fix Speed Hermetic Household Compressor for Air-Conditioning &Heatpump Applications
| Model NO. | 5PS118UBA21 | Refrigerant | R410A |
| Cooling Capacity (W) | 3450 | Weight(KG) | 12 |
| Motor | Permanent Split Capacitor | Input Power (W) | 1190 |
| Displacement(cm³) | 11.9 | Origin | China |
| Type | Rotary | Painting | Black color paintbaked |
| Oil | FV50S Or equivalent | Discharge Tube I.D.(mm) | 8.06 |
| Suction Tube I.D.(mm) | 12.9 | Approval Type | UL |
| Voltage/Frequency | 115 V 60HZ 1Phase | Current(A) | 10.5 |

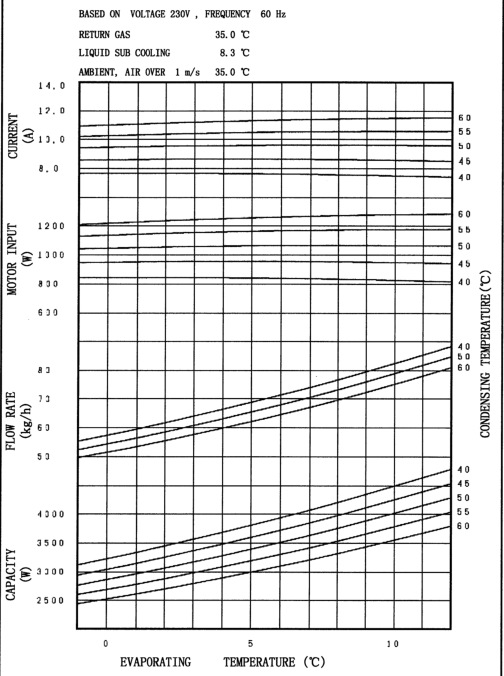

Rating Conditions: N-TEC
Evaporating Temperature.: 7.2℃
Condensing Temperature: 54.4℃
Return gas Temperature: 35.0℃
Liquid Temperature.: 46.1℃
Ambient, air over: 35.0℃，1m/s
- CATEGORIES
- 9KD420ZBA21
- 9VD330XAB2
1.High-quality, Reliable
2.Compact size and light weight
3.Low Noise and Vibration
4.Ultra-precision machining and assembly technology
LEAVE A MESSAGE
If you are interested in our products and want to know more details, please leave a message here, we will reply you as soon as we can.
LEAVE A MESSAGE
LEAVE A MESSAGE

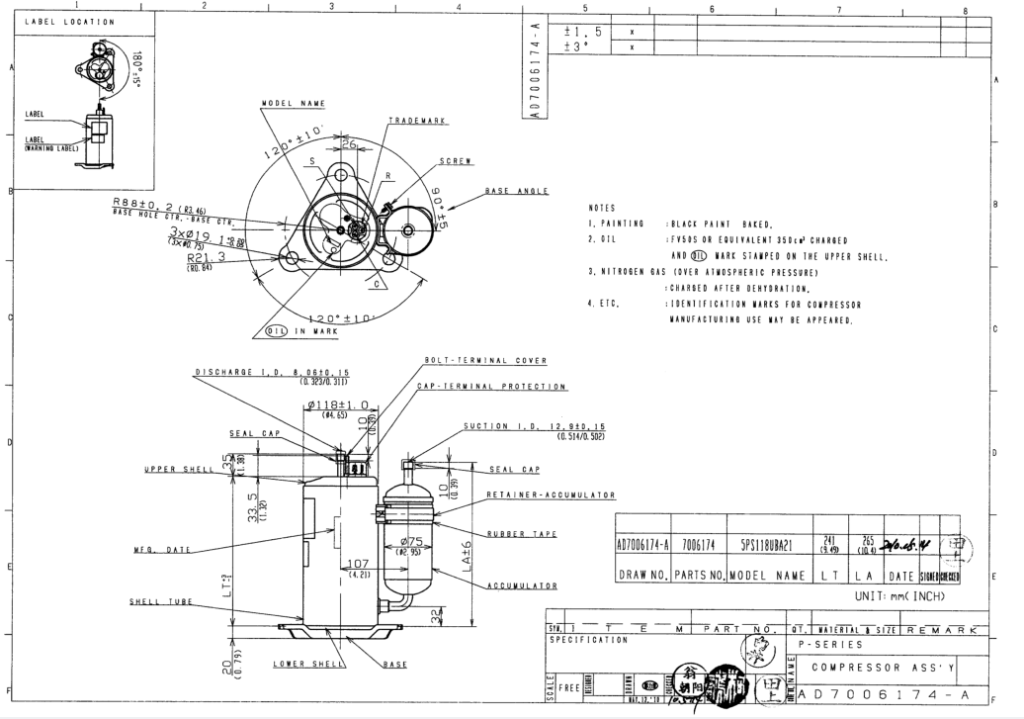

| NAME | PARTS NO. | DRAW NO. | REMARKS | QTY UNIT | MARK | SUPPLY | |
| COMPRESSOR ASS'Y | 7006174 | AD7006174-A | OIL IN | 1 | A | ||
| PARTS | TERMINAL COVER | 7070219U | AD7070219U | --- | 1 | A | |
| TERMINAL COVER GASKET | 7070620U | AD7070620U | --- | 1 | A | ||
| NUT-TERMINAL COVER | 7080310 | AD7080310 | --- | 1 | A | ||
| NUT GASKET | 7070621U | AD7070621U | --- | 1 | A | ||
| RUBBER CRONMET | 7070887 | AD7070887 | --- | 3 | A | ||
| OVERLOAD PROTECTOR | 7100887 | AD7100887 | B355-140-141H | 1 | B | ||
| SPRING FOR OLP HOLD DOWN | 7041200 | AD7041200 | --- | 1 | A | ||
| RUN CAPACITOR | --- | --- | 50U F/250V | 1 | C | ||
| RETAINER | --- | --- | --- | --- | --- | ||
| A:Purchaser must use above specified parts N0. made by compressor supplier. B:Purchaser use get specified parts directly from supplier of the parts. C:Purchaser may get specified parts from any source. | |||||||
