Panasonic Rotary R410A DC Inverter Hermetic Household Compressor for Air-Conditioning &Heatpump Applications
| Model NO. | 5RD138ZBB21 | Refrigerant | R410A |
| Cooling Capacity (W) | 3600 | Weight(KG) | 8.1 |
| Motor | Brushless motor | Input Power (W) | 1320 |
| Displacement(cm³) | 13.94 | Origin | China |
| Type | Rotary | Painting | Black color paintbaked |
| Oil | FV50S | Discharge Tube I.D.(mm) | 8.06 |
| Suction Tube I.D.(mm) | 12.9 | Approval Type | CCC |
| Voltage/Frequency | 280V DC |
Rating Conditions: N-JIS-A
Evaporating Temperature.: 7.0℃
Condensing Temperature: 55.0℃
Return gas Temperature: 18.0℃
Liquid Temperature.: 55.0℃
Ambient, air over: 35.0℃，1m/s
- CATEGORIES
- 9KD420ZBA21
- 9VD330XAB2
1.High-quality, Reliable
2.Compact size and light weight
3.Low Noise and Vibration
4.Ultra-precision machining and assembly technology
LEAVE A MESSAGE
If you are interested in our products and want to know more details, please leave a message here, we will reply you as soon as we can.
LEAVE A MESSAGE
LEAVE A MESSAGE
| NAME | PARTS NO. | DRAW NO. | REMARKS | QTY UNIT | MARK | SUPPLY | |

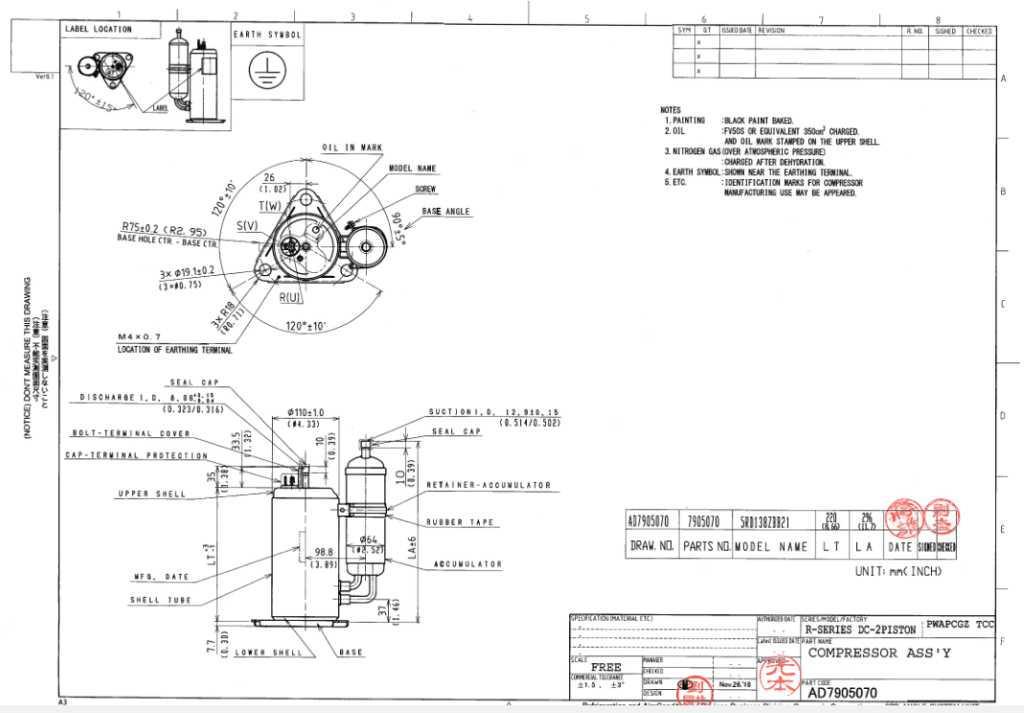

| COMPRESSOR ASS'Y | 7905070 | AD7905070 | OIL IN | 1 | A | ||
| PARTS | TERMINAL COVER | 7070220U | AD7070220U | --- | 1 | A | |
| TERMINAL COVER GASKET | 7070630U | AD7070630U | --- | 1 | A | ||
| NUT-TERMINAL COVER | 7080310 | AD7080310 | --- | 1 | A | ||
| NUT GASKET | 7070621U | AD7070621U | --- | 1 | A | ||
| RUBBER CRONMET | 7070837 | AD7070837 | --- | 3 | A | ||
| OVERLOAD PROTECTOR | 7100956 | AD7100956 | KSD301-11.5/10BC16X2 S4 | 1 | B | ||
| SPRING FOR OLP HOLD DOWN | 7071200 | AD7071200 | --- | 1 | A | ||
| RUN CAPACITOR | --- | --- | --- | --- | --- | ||
| RETAINER | --- | --- | --- | --- | --- | ||
| A:Purchaser must use above specified parts N0. made by compressor supplier. B:Purchaser use get specified parts directly from supplier of the parts. C:Purchaser may get specified parts from any source. | |||||||
