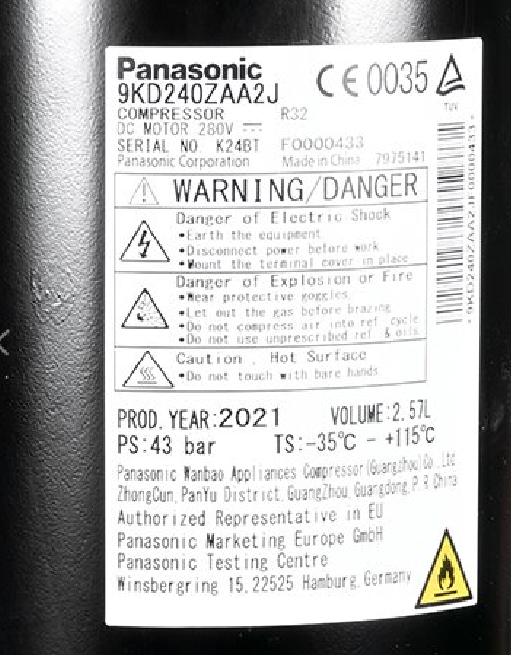

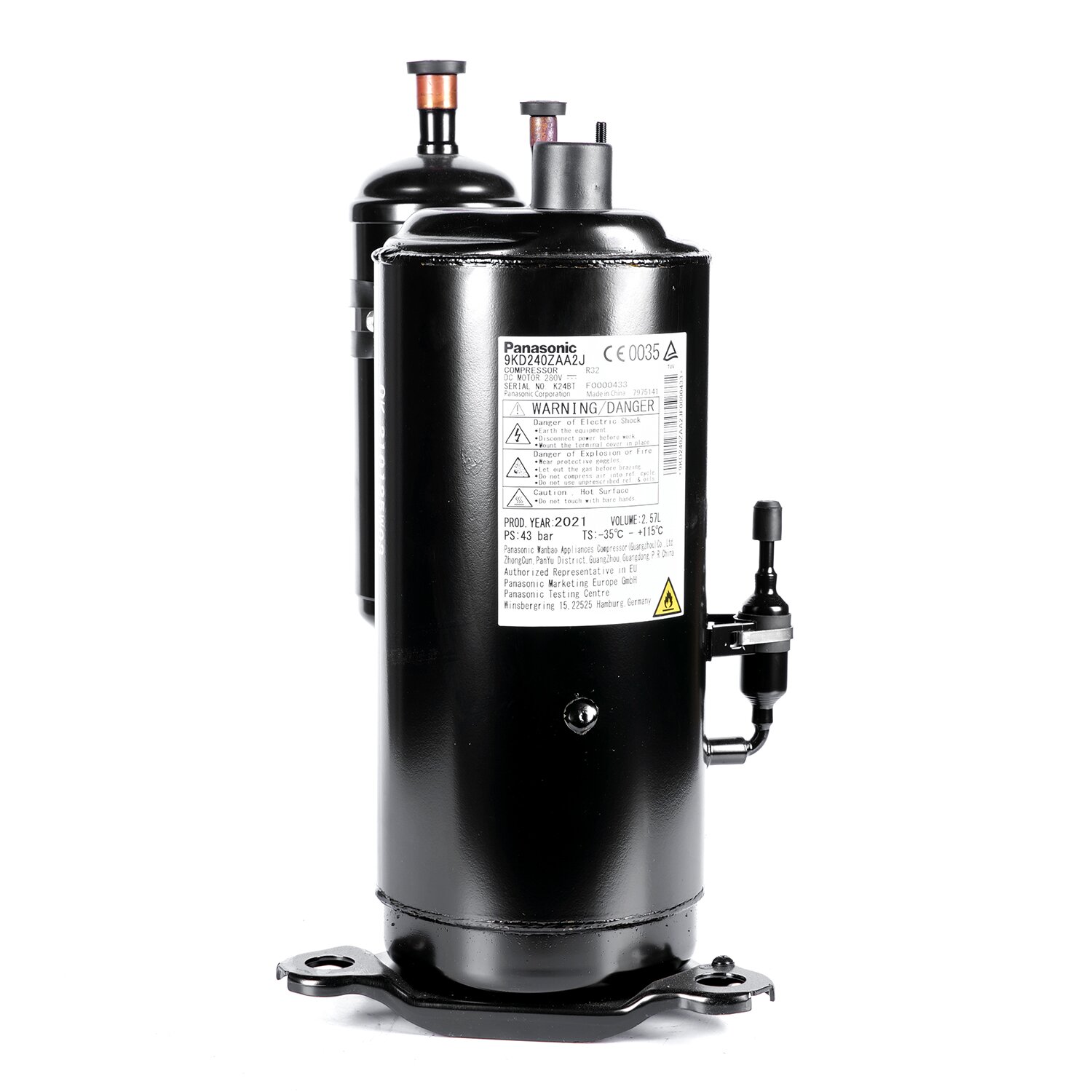

Panasonic Rotary R32 Dc Inverter Hermetic Household Compressor for Air-Conditioning &Heatpump Applications
| Model NO. | 9KD240ZAA2J | Refrigerant | R32 |
| Heating Capacity (W) | 9440 | Weight(KG) | 14.3 |
| Motor | Brushless motor | Motor Input (W) | 2580 |
| Displacement(cm³) | 24.0 | Origin | China |
| Pump Type | Rotary | Painting | Black color paintbaked |
| Oil | FW50S | Discharge Tube I.D.(mm) | 8.06 |
| Suction Tube I.D.(mm) | 16.0 | Approval Type | PED ,TUV |
| Dc Voltage Of The Inverter | 280V | Ref Charge Limit | 1800g MAX. |

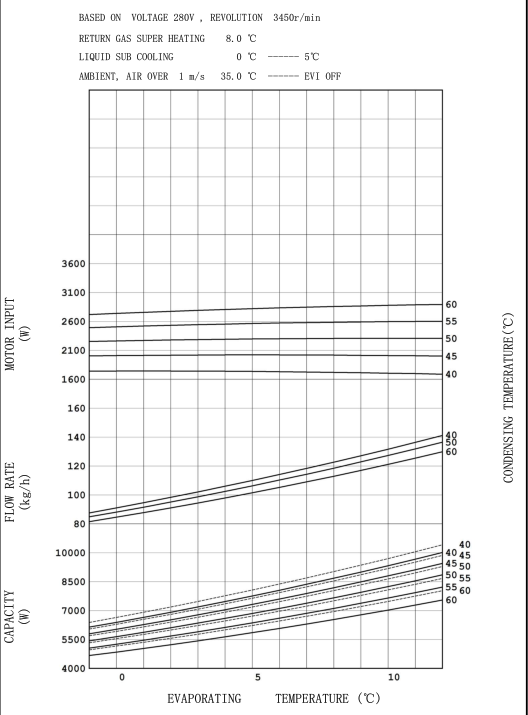

Rating Conditions: P-JIS-A
Evaporating Temperature.: 7.0℃
Condensing Temperature: 55.0℃
Return gas Temperature: 15.0℃
Liquid Temperature.: 55.0℃
Ambient, air over: 35.0℃，1m/s
- CATEGORIES
- 9KD420ZBA21
- 9VD330XAB2
1.High compression ratio, special design for HPWH.
2.High condensing temperature, to ensure the requirement of high outlet water temperature.
3.Ultra-low temperature patented technology of EVl, reliable operation in low temperature, and wide range of application.
4.High wear-resistant slider surface treatment patent technology application, high reliability. machining and assembly technology
LEAVE A MESSAGE
If you are interested in our products and want to know more details, please leave a message here, we will reply you as soon as we can.
LEAVE A MESSAGE
LEAVE A MESSAGE

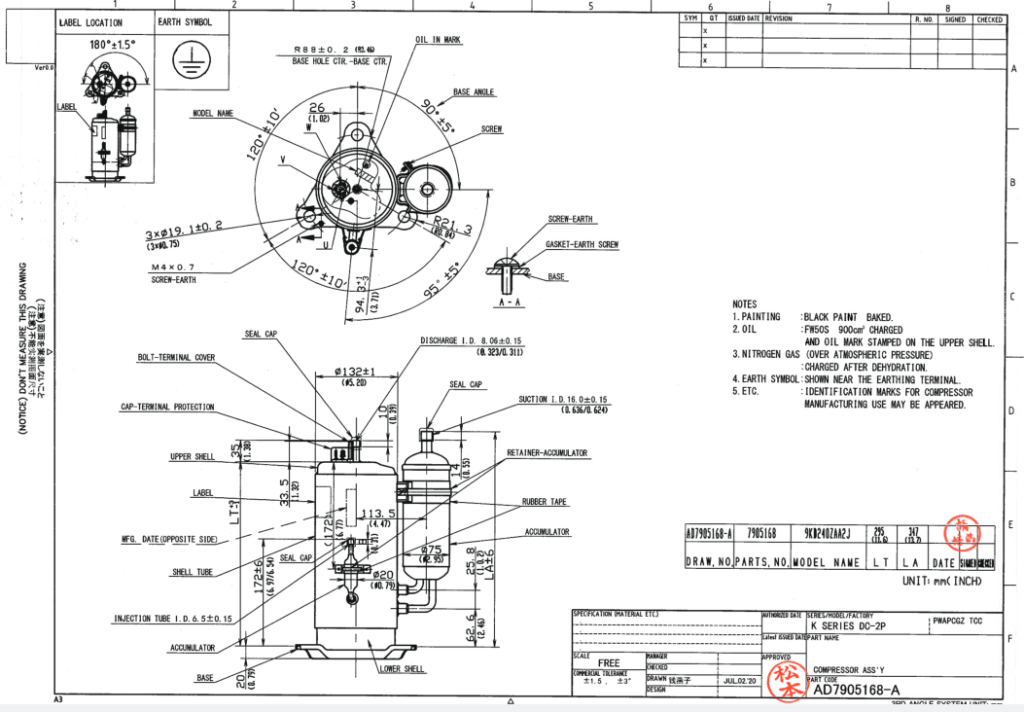

| NAME | PARTS NO. | DRAW NO. | REMARKS | QTY UNIT | MARK | SUPPLY | |
| COMPRESSOR ASS'Y | 7905168 | AD7905168-A | OIL IN | 1 | A | ||
| PARTS | TERMINAL COVER | 7070220 | AD7070220U | --- | 1 | A | |
| TERMINAL COVER GASKET | 7070630 | AD7070630 | --- | 1 | A | ||
| NUT-TERMINAL COVER | 7080310 | AD7080310 | --- | 1 | A | ||
| NUT GASKET | 7070621U | AD7070621U | --- | 1 | A | ||
| RUBBER CRONMET | 7070815 | AD7070815 | --- | 3 | A | ||
| OVERLOAD PROTECTOR | 7100956 | AD7100956 | KSD301-11.5/10BC16X2-S4 | 1 | B | ||
| SPRING FOR OLP HOLD DOWN | 7071200 | AD7071200 | --- | 1 | A | ||
| A:Purchaser must use above specified parts N0. made by compressor supplier. B:Purchaser use get specified parts directly from supplier of the parts. C:Purchaser may get specified parts from any source. | |||||||
