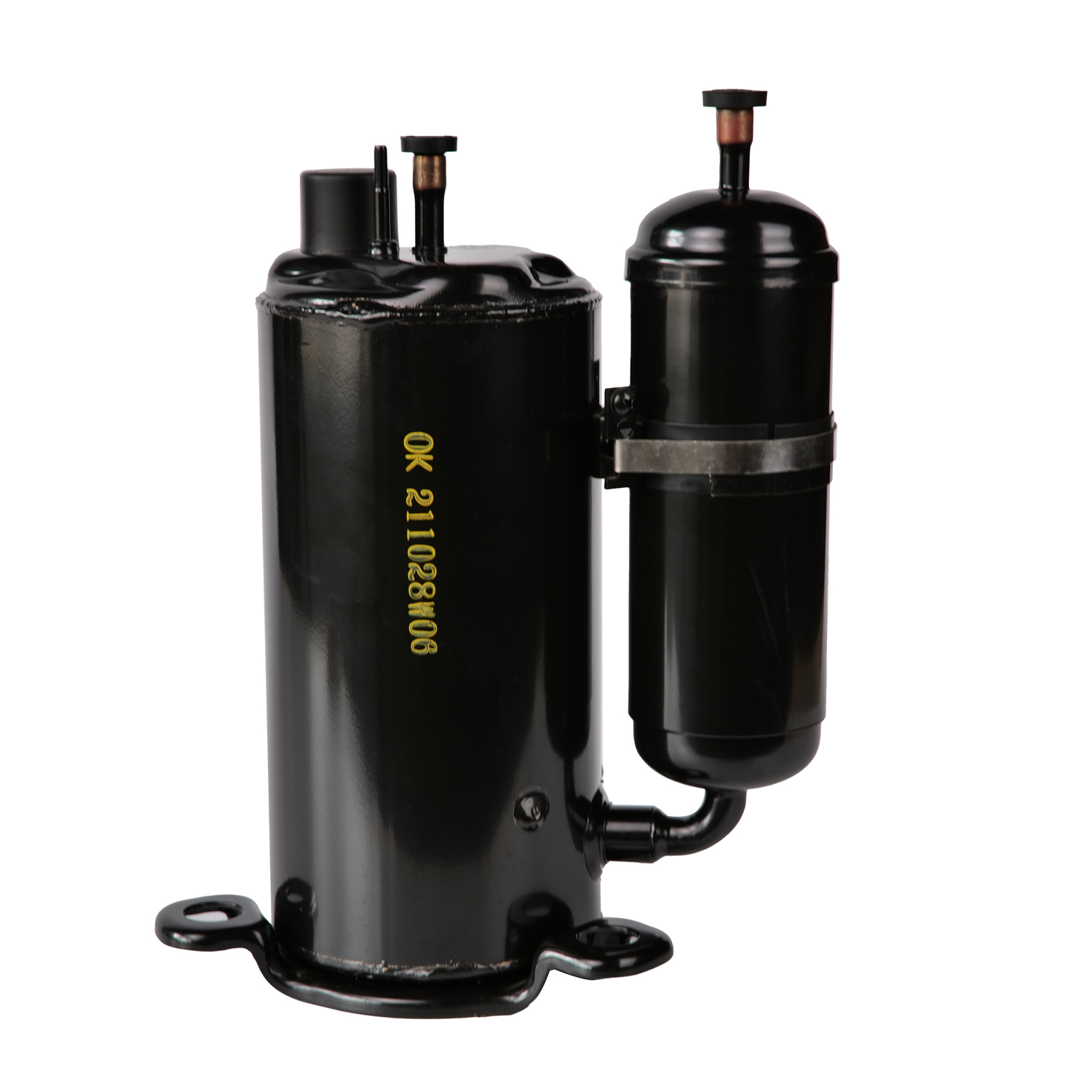

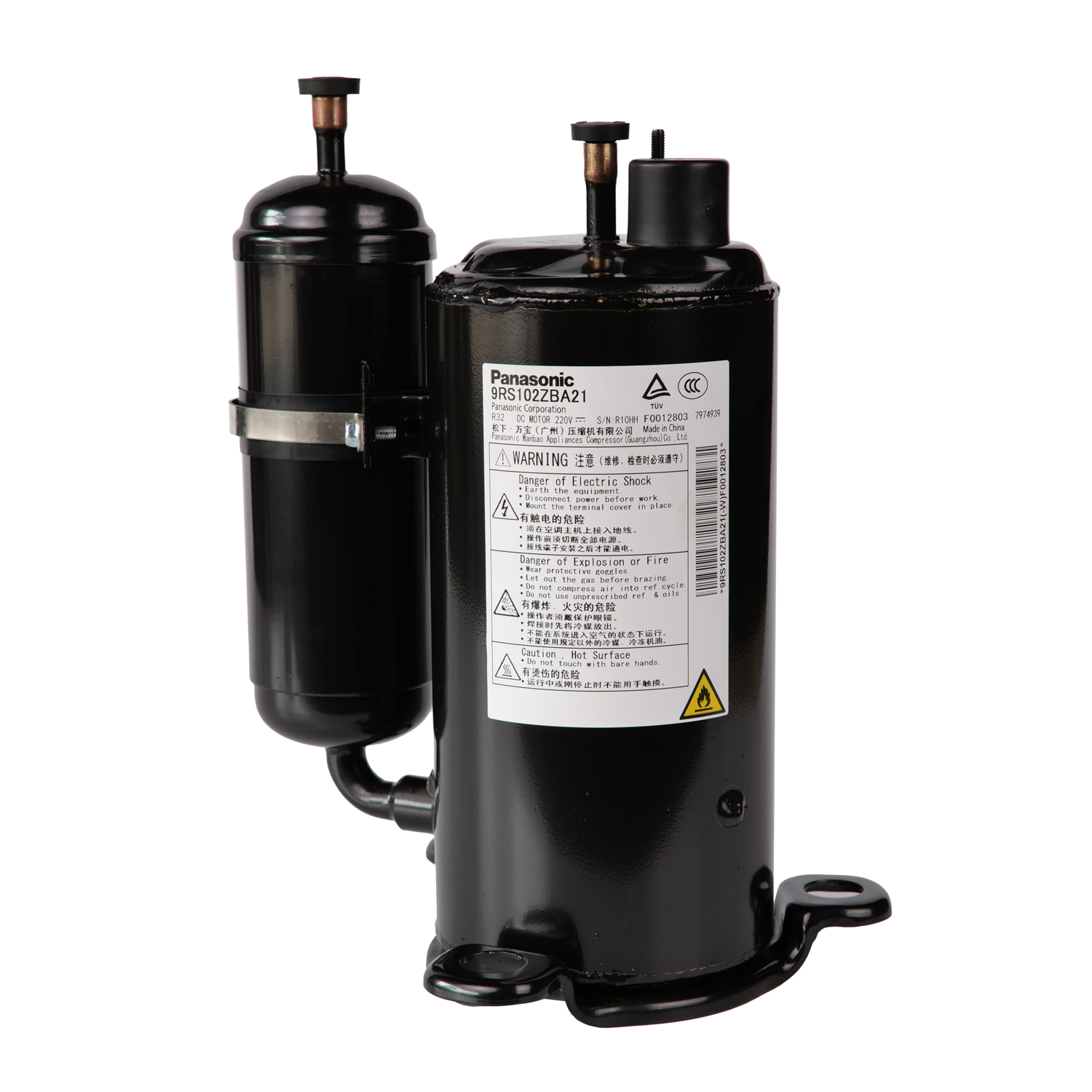

Panasonic Rotary R32 DC Inverter Hermetic Compressor for Air-Conditioning &Heatpump Applications
| Model NO. | 9RS102ZBA21 | Refrigerant | R32 |
| Cooling Capacity (W) | 2875 | Weight(KG) | 7.4 |
| Motor | Brushless motor | Input Power (W) | 1030 |
| Displacement(cm³) | 10.3 | Origin | China |
| Type | Rotary | Painting | Black color paintbaked |
| Oil | FW50S or FV50S | Discharge Tube I.D.(mm) | 8.06 |
| Suction Tube I.D.(mm) | 9.7 | Approval Type | CCC ,TUV |
| Voltage/Frequency | 220V DC |

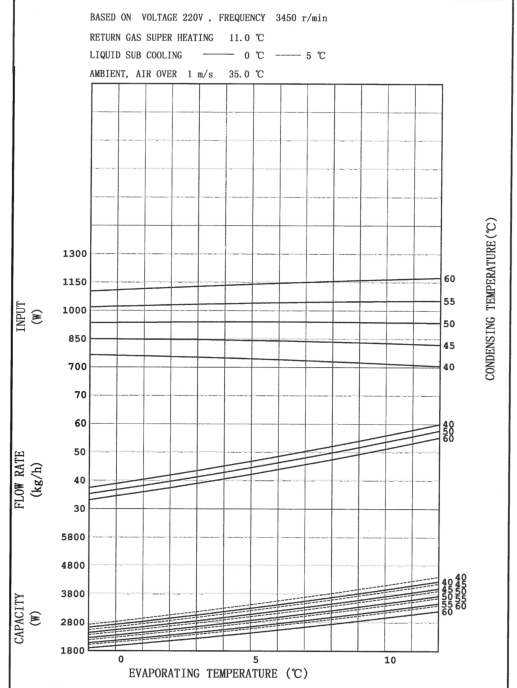

Rating Conditions: N-TEC
Evaporating Temperature.: 7.2℃
Condensing Temperature: 54.4℃
Return gas Temperature: 35.0℃
Liquid Temperature.: 46.1℃
Ambient, air over: 35.0℃，1m/s
- CATEGORIES
- 9KD420ZBA21
- 9VD330XAB2
1.High-quality, Reliable
2.Compact size and light weight
3.Low Noise and Vibration
4.Ultra-precision machining and assembly technology
LEAVE A MESSAGE
If you are interested in our products and want to know more details, please leave a message here, we will reply you as soon as we can.
LEAVE A MESSAGE
LEAVE A MESSAGE
| NAME | PARTS NO. | DRAW NO. | REMARKS | QTY UNIT | MARK | SUPPLY | |

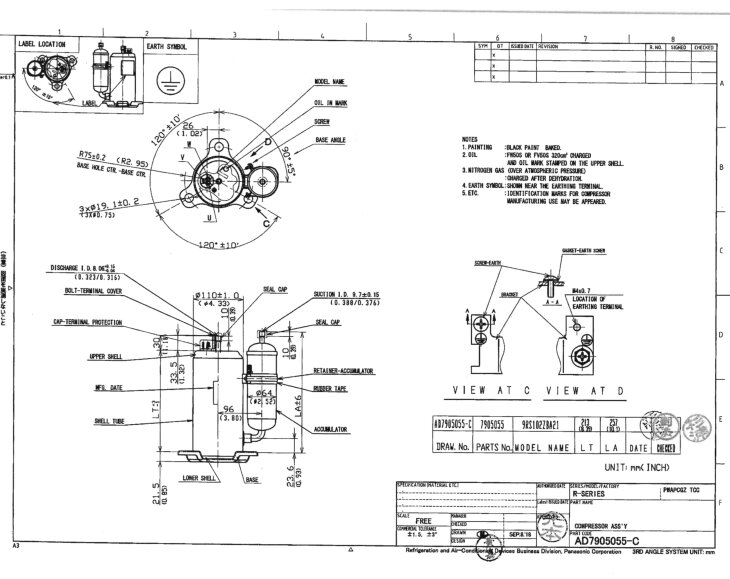

| COMPRESSOR ASS'Y | 7905055 | AD7905055-C | OIL IN | 1 | A | ||
| PARTS | TERMINAL COVER | 7070242U | AD7070242U | --- | 1 | A | |
| TERMINAL COVER GASKET | 7070647U | AD7070647U | --- | 1 | A | ||
| NUT-TERMINAL COVER | 7080310 | AD7080310 | --- | 1 | A | ||
| NUT GASKET | 7070621U | AD7070621U | --- | 1 | A | ||
| RUBBER CRONMET | 7070863 | AD7070863 | --- | 3 | A | ||
| OVERLOAD PROTECTOR | --- | --- | --- | --- | --- | ||
| SPRING FOR OLP HOLD DOWN | --- | --- | --- | --- | --- | ||
| A:Purchaser must use above specified parts N0. made by compressor supplier. B:Purchaser use get specified parts directly from supplier of the parts. C:Purchaser may get specified parts from any source. | |||||||
